Electrical parameters:
1.Frequency range: 806-9600MHz 1710-2690MHz
2.Polarization: vertical
3.Gain:8.5±1dbi(806-960MHz) 9.5±1dbi(1710-2690MHz)
4.Horizontal half power beam width: 75±10°, 70±15°
5.Vertical half power beam width: 55°(806-960MHz), 50°(1710-2690MHz)
6.Front-to-back ratio:>15dB
7.VSWR: ≤1.5
8.Third order intermodulation: <-107dBm
9.Input impedance: 50Ω
10.Power capacity: 50W
11.Anti-lightning protection: DC ground
Product feature:

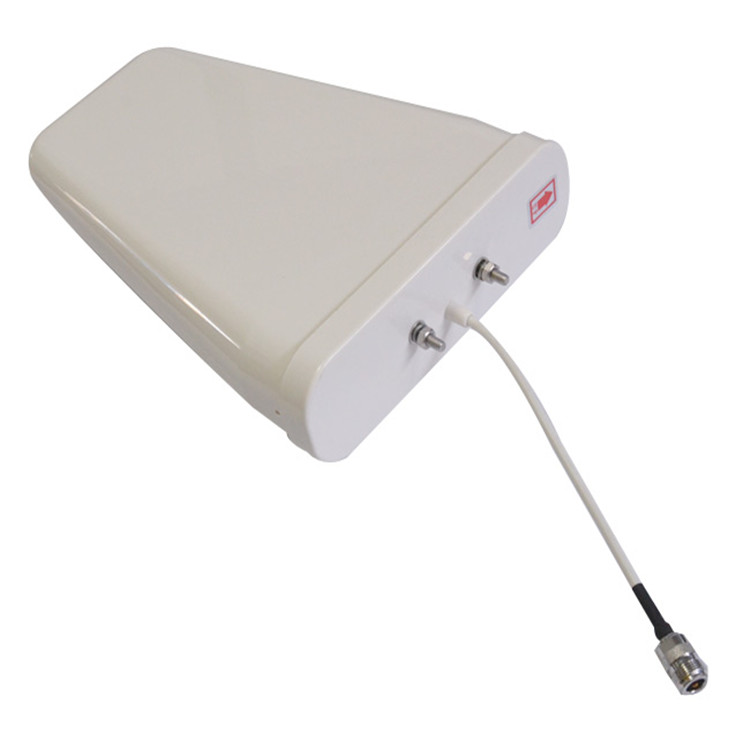

log-periodic antennas are widely used and efficient. It has a high efficiency almost expected value and better directivity, easy site construction and easy maintenance compared with other high gain antennas.
