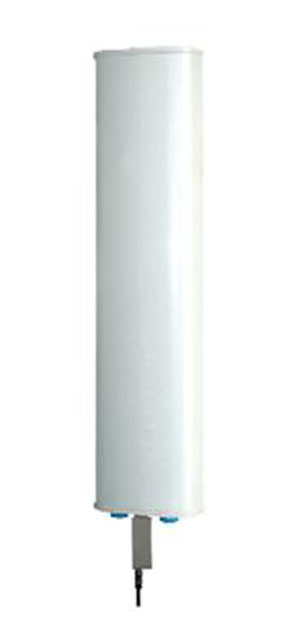

DCS, DTS (2G) base station antenna

DCS and DTS base station antennas have a powerful control function and high system reliability. It adopt CRT operation station with good human-computer interface and modularity structure in software and hardware which own features of easy system development, dynamic software programming, easy operation and high performance to price ratio. They also have features of easy station construction, easy maintenance, clear calls and high security.

Download

Electrical parameters:

1.Frequency range: 1710-1880MHz 1850-1990MHz 1920-2170MHz

2.Polarization: ±45°

3.Gain:18dbi

4.Down-tilt:0-10°

5.Beam bandwidth: Horizontal 65°±1, vertical 7°

6.Upper side lobe restrain: ≥16dB

7.Cross polarization ratio: 15（@0°）、≥10（@±60）

8.Front-to-back ratio:>25dB

9.VSWR: ≤1.4

10.Isolation degree:>30dB

11.Third order intermodulation: <-107dBm

12.Input impedance: 50Ω

13.Power capacity: 350W

14.Anti-lightning protection: DC grounded

Basic mechanical performance:

1.Product category:2×7/16DIN female

2.Size (without packet):1459*190*120mm

3.Size (with packet):1820*210*190mm

4.Weight (without packet):8.6kg

5.Weight (with packet):18.85kg

6.Wind load area：0.25m2

7.Wind resistance: 60m/s

8.Antenna shield material: UPVC

9.Interface position: bottom

10.Mechanical down-tilt: 0~10°

11.Operating temperature: -40~+60℃

12.Pole mounted: ￠50~￠115

Product feature:

Powerful control function, high system reliability. Use CRT operation site with excellent AI interface. Modular software and hardware structure. Easy system research and development and dynamic software programing. Easy site construction and maintenance, clear calls and high security level.
